We support 3D printing with various materials. Feel free to contact us or visit our factory.
🎁 New users only — Register now and get up to $20 coupons for your first orders!
ASA Plastic

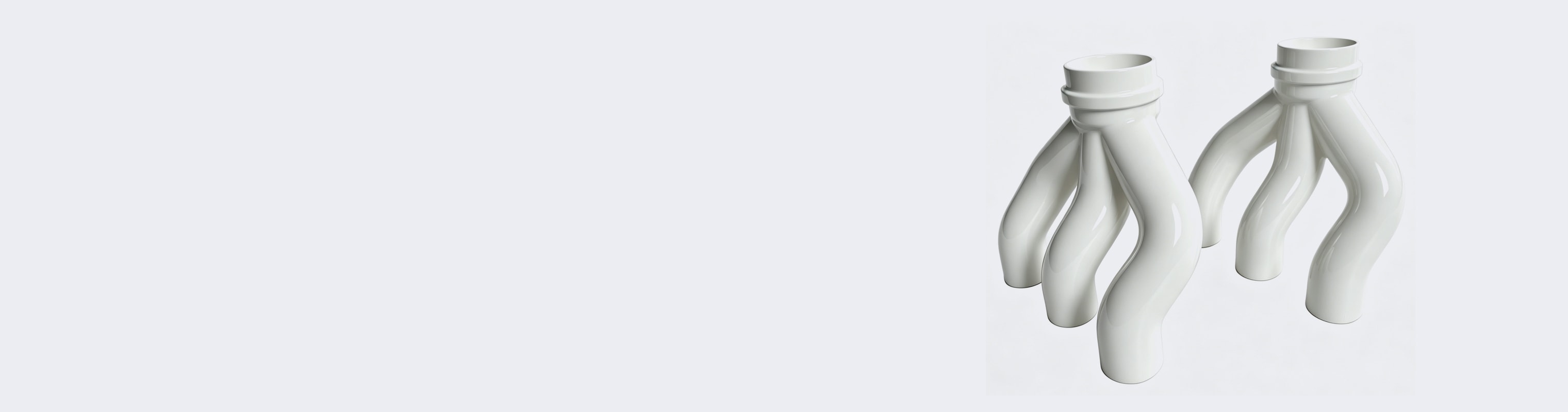

ASA Plastic 3D printing material
ASA is a high-performance engineering plastic with excellent weather and UV resistance. It offers good mechanical strength, high rigidity, and stable color retention outdoors. Heat-resistant, durable, and suitable for outdoor parts, automotive components, and high-strength functional prints.
Product Specifications & Features
Price: Our ASA Plastic 3D printing service starts at an affordable price of $3.00, offering cost-effective solutions for both small-batch prototypes and industrial-grade functional parts.
Technology: Manufactured using mature FDM (Fused Deposition Modeling) technology, a widely adopted industrial 3D printing process that delivers reliable molding quality, stable layer adhesion, and consistent part performance.
Build time: The standard production lead time is 96 hours. For large batch orders or complex geometric designs, the manufacturing period will be appropriately extended to ensure quality.
Colors: Available in two standard colors: Black and White, meeting common aesthetic and application requirements for most industrial and outdoor use cases.
Tolerance: Strict dimensional accuracy is maintained throughout production. The tolerance is ±0.3mm for dimensions ≤100mm, or within 0.4% for dimensions exceeding 100mm.
Wall thickness: Recommended minimum wall thickness is 1.6mm for optimal structural strength and print stability; the absolute minimum wall thickness is 1.2mm for lightweight designs.
Maximum build size: The maximum printable dimension is 250mm × 250mm × 250mm, supporting the production of medium-sized functional components and assembly parts.
Minimum build size: The minimum printable dimension is 30mm × 30mm × 15mm, suitable for small functional prototypes and precision outdoor accessories.
Heat deflection temp: Boasts a reliable heat deflection temperature of 97.8°C, ensuring stable structural performance under moderate high-temperature conditions.
Strengths: Delivers excellent durability, outstanding high-temperature resistance, balanced toughness, and reliable comprehensive mechanical performance, adapting to complex working environments.
Weaknesses: Features a natural textured surface typical of FDM printing, which is inherent to the process and does not affect functional performance.
Applications: Perfect for applications requiring long-term outdoor use, exposure to direct sunlight and UV light environments; ideal for functional prototypes, assembled structural parts, automotive components, and household appliance parts.
Material Properties
Price: Our ASA Plastic 3D printing service starts at an affordable price of $3.00, offering cost-effective solutions for both small-batch prototypes and industrial-grade functional parts.
Technology: Manufactured using mature FDM (Fused Deposition Modeling) technology, a widely adopted industrial 3D printing process that delivers reliable molding quality, stable layer adhesion, and consistent part performance.
Build time: The standard production lead time is 96 hours. For large batch orders or complex geometric designs, the manufacturing period will be appropriately extended to ensure quality.
Colors: Available in two standard colors: Black and White, meeting common aesthetic and application requirements for most industrial and outdoor use cases.
Tolerance: Strict dimensional accuracy is maintained throughout production. The tolerance is ±0.3mm for dimensions ≤100mm, or within 0.4% for dimensions exceeding 100mm.
Wall thickness: Recommended minimum wall thickness is 1.6mm for optimal structural strength and print stability; the absolute minimum wall thickness is 1.2mm for lightweight designs.
Maximum build size: The maximum printable dimension is 250mm × 250mm × 250mm, supporting the production of medium-sized functional components and assembly parts.
Minimum build size: The minimum printable dimension is 30mm × 30mm × 15mm, suitable for small functional prototypes and precision outdoor accessories.
Heat deflection temp: Boasts a reliable heat deflection temperature of 97.8°C, ensuring stable structural performance under moderate high-temperature conditions.
Strengths: Delivers excellent durability, outstanding high-temperature resistance, balanced toughness, and reliable comprehensive mechanical performance, adapting to complex working environments.
Weaknesses: Features a natural textured surface typical of FDM printing, which is inherent to the process and does not affect functional performance.
Applications: Perfect for applications requiring long-term outdoor use, exposure to direct sunlight and UV light environments; ideal for functional prototypes, assembled structural parts, automotive components, and household appliance parts.
Measurement |
Test Method |
Value |
| Young's modulus (X-Y) | ASTM D638 (ISO 527, GB/T 1040) | 2379 ± 157 (MPa) |
| Tensile strength (X-Y) | ASTM D638 (ISO 527, GB/T 1040) | 43.8 ± 0.8 (%) |
| Elongat ion atbreak (X-Y) | ASTM D638 (ISO 527, GB/T 1040) | 6.7 ± 0.6 (%) |
| Bending modulus (X-Y) | ASTM D790 (ISO 178, GB/T 9341) | 3206 ± 108 (MPa) |
| Bending strength (X-Y) | ASTM D790 (ISO 178, GB/T 9341) | 73.4 ± 2.1 (kJ/㎡) |
| Charpy impact strength(X-Y) | ASTM D256 (ISO 179, GB/T 1043) | 10.3 ± 0.4 (kJ/㎡) |
