Binder Jetting 3D Printing

Binder Jetting 3D Printing Service

BJ metal 3D printing is an innovative powder-bed additive manufacturing solution that uses high-precision inkjet printheads to deposit liquid binder selectively on metal, ceramic, sand and other powder materials, building complete 3D parts through layer-by-layer bonding. Standing out from conventional metal manufacturing processes, this solution features extraordinary rapid 3d printing speed, 5–10 times more efficient than SLM printing. It requires no manual support setup, achieves vivid full-color printing via dyed binder formulas, and supports a wide range of raw materials with cost-effective equipment deployment. Professional sintering and infiltration post-treatment further optimizes part density and overall durability. Our professional custom 3d printing service provides flexible 3d printing on demand, covering full-color prototype customization, architectural model production, high-precision 3d printing metal parts, automotive structural components and industrial sand casting molds, perfectly meeting personalized and small-batch industrial production needs.

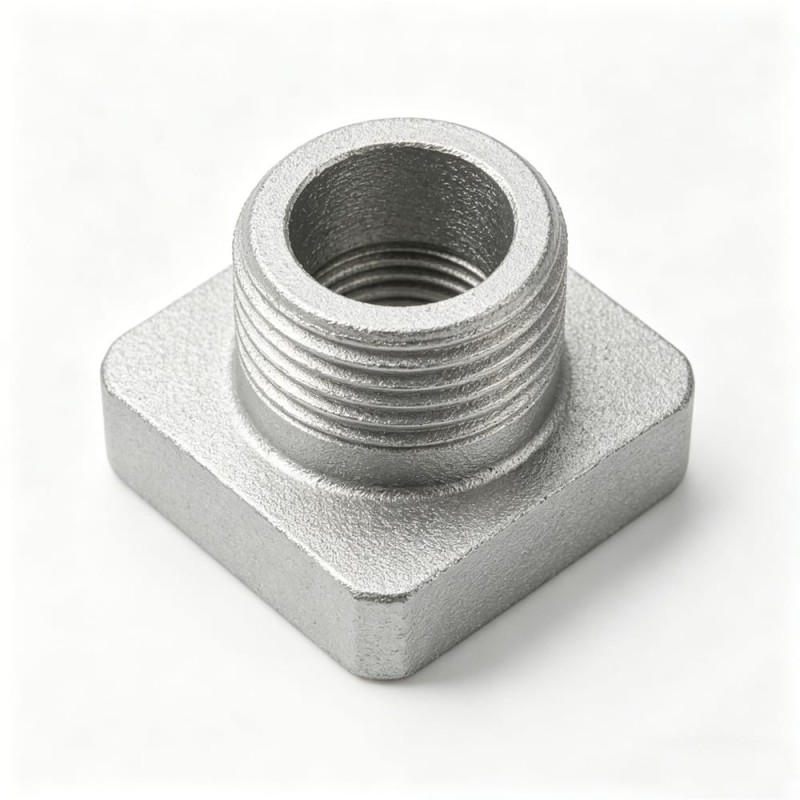

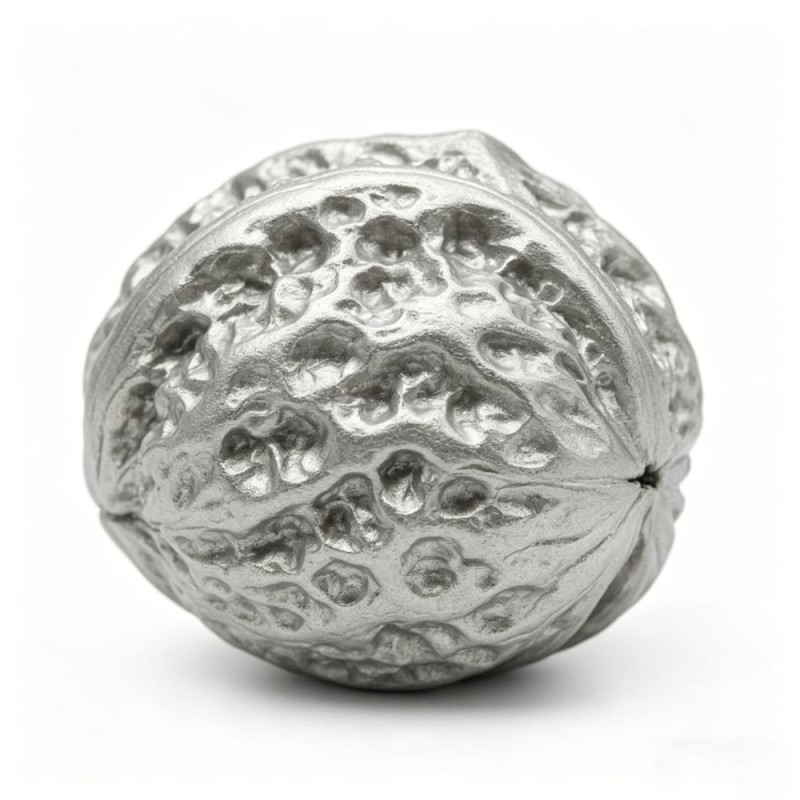

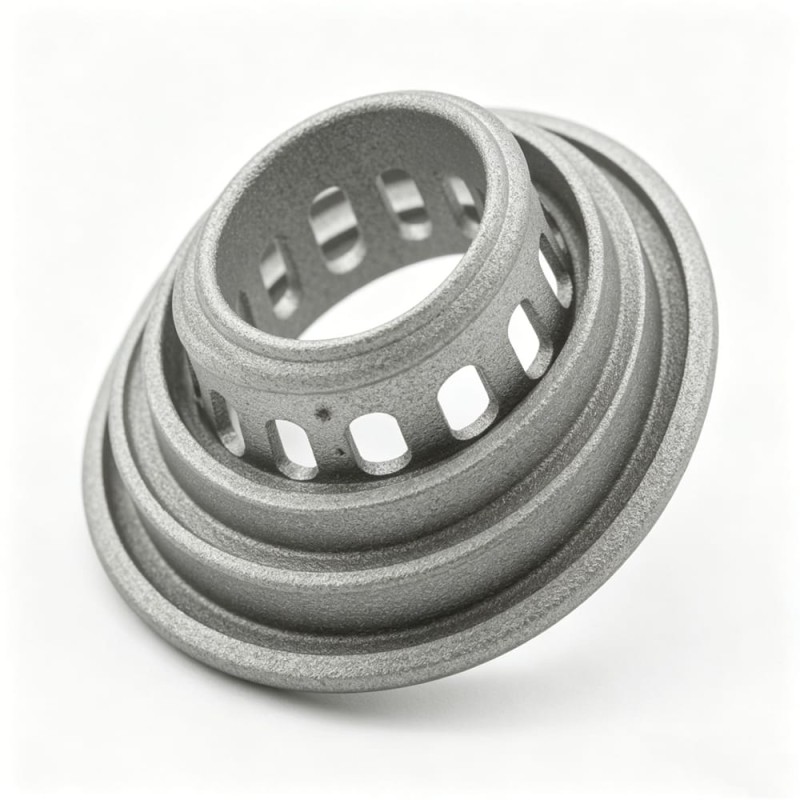

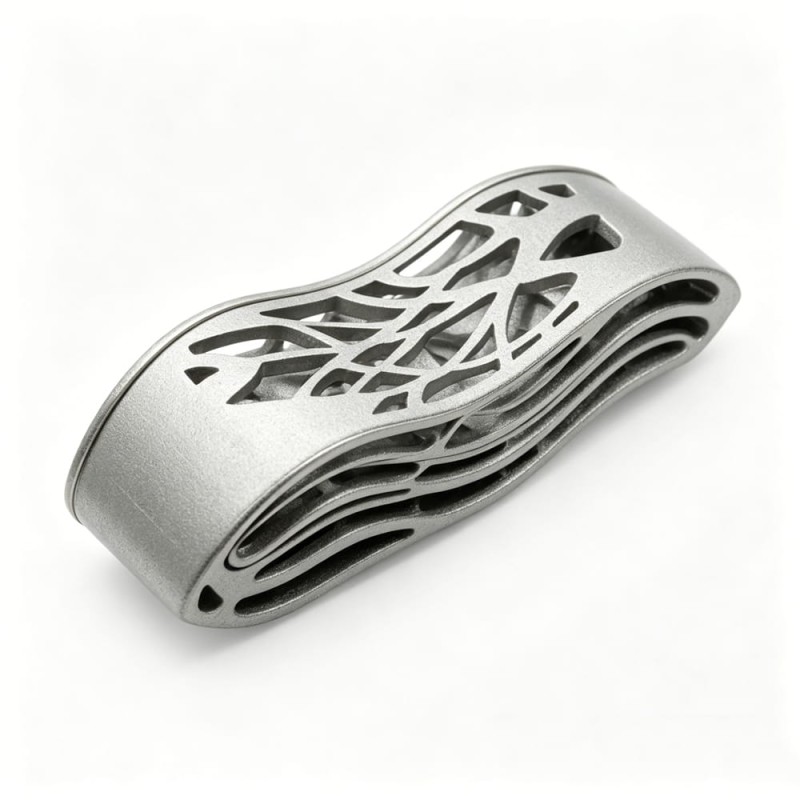

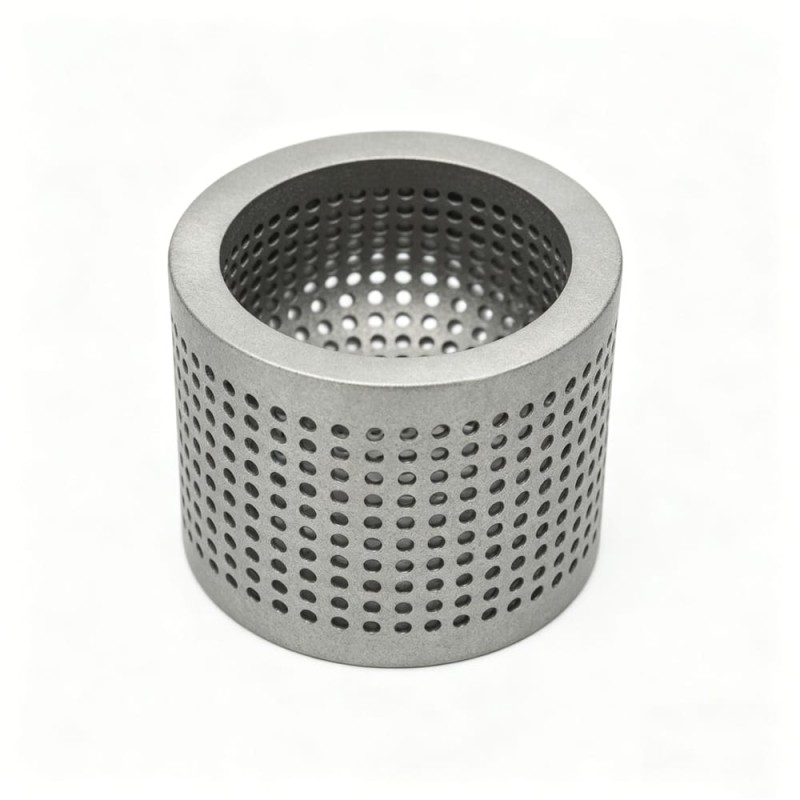

BJ - 316L Stainless Steel is a low-carbon austenitic stainless steel fabricated via Binder Jetting (BJ) 3D printing, with the grade 022Cr17Ni12Mo2 (S31603). It contains 16–18% Cr, 10–14% Ni, 2–3% Mo, and ≤0.03% C. Key features: high corrosion resistance (excellent resistance to pitting/crevice corrosion in chloride environments like seawater); high strength & toughness (tensile strength ≥485 MPa, yield strength ≥170 MPa, elongation ≥40%); no support structures needed (loose powder acts as natural support); smooth surface (Ra 4.0–8.0 μm); cost-effective (5–10x faster than SLM, lower equipment cost); good weldability & biocompatibility. Post-processing (sintering/HIP) enhances density. Ideal for functional components, industrial parts, medical implants, marine/chemical equipment, piping, and lightweight structures.

BJ - 316L Stainless Steel
BJ - 316L Stainless Steel BJ - 316L Stainless Steel
BJ - 316L Stainless Steel
BJ - 316L Stainless Steel BJ - 316L Stainless Steel
BJ - 316L Stainless Steel
BJ - 316L Stainless Steel BJ - 316L Stainless Steel
BJ - 316L Stainless Steel
BJ - 316L Stainless Steel BJ - 316L Stainless Steel
BJ - 316L Stainless Steel
BJ - 316L Stainless Steel BJ - 316L Stainless Steel
BJ - 316L Stainless Steel

Design Guidelines for Binder Jetting

Features
Recommended Size
Minimum Build Size 5mm*5mm*5mm/10mm*10mm*2mm
Maximum Build Size 100mm*100mm*100mm
Recommended wall thickness >1.5mm
Minimum Embossed & Engraved Details 1.0 mm deep & 1.0 mm wide
Minimum Clearance (between parts that will be assembled together) 0.5mm
Minimum Clearance (between two moving or connecting parts) 1.0mm
Threads Design /
Minimum Escape Hole Diameter 2.5mm
Minimum Holes design 1.5mm (ratio of hole depth to diameter does not exceed 3:1)
Minimum column design 1.5mm
Tolerance ±0.3mm or ±0.4% (for model size ≤50mm); ±1.3% (for model size > 50mm)
Build Time 5 days
