FR-4 is the code name of a flame-resistant material grade, which means that the resin material must be able to extinguish itself after the burning state.
Get instant quote
FR4

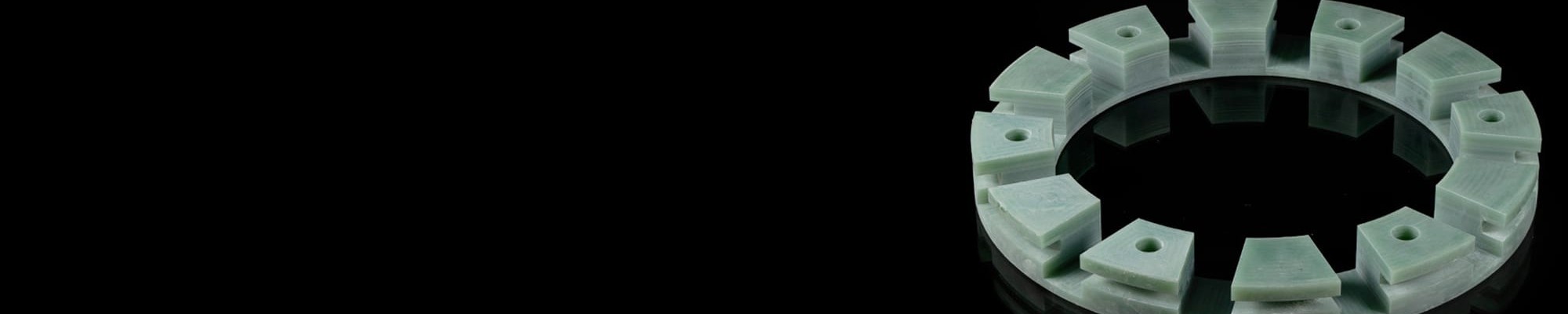

FR4 CNC Machining
FR-4 is a flame-retardant material grade coded FR-4, which means the resin material can self-extinguish when ignited. Most FR-4 materials are composites composed of multi-functional epoxy resin, fillers and glass fiber.
The FR-4 epoxy glass cloth laminates produced in our factory are widely used in various industries, and are commonly named FR-4 epoxy glass sheet, insulation board, epoxy board, brominated epoxy resin board, FR-4 fiberglass board, FR-4 reinforcement sheet, FPC stiffener, flexible circuit board stiffener and so on. Featuring outstanding electrical insulation, excellent flatness, smooth surface and standard thickness tolerance, these products suit fields with strict requirements for high-performance electronic insulation.
Our FR-4 materials are processed into diverse products, such as FPC stiffeners, PCB drilling backup boards, fiberglass dielectrics, carbon film printing fiberglass sheets for potentiometers, precision rotary star gears (wafer grinding), precision test boards, etc. Besides, FR-4 can be made into insulation separators for electrical equipment, insulation gaskets, transformer insulation plates, motor insulation components, grinding gears and insulation boards for electronic switches.
Supported by our advanced production technology and rigorous quality control, our FR-4 materials deliver stable high performance across all sectors. We supply insulation solutions that meet customers’ stringent standards and promote technological innovation and development. We strive to be an industry leader, providing premium FR-4 products for all clients.
The FR-4 epoxy glass cloth laminates produced in our factory are widely used in various industries, and are commonly named FR-4 epoxy glass sheet, insulation board, epoxy board, brominated epoxy resin board, FR-4 fiberglass board, FR-4 reinforcement sheet, FPC stiffener, flexible circuit board stiffener and so on. Featuring outstanding electrical insulation, excellent flatness, smooth surface and standard thickness tolerance, these products suit fields with strict requirements for high-performance electronic insulation.
Our FR-4 materials are processed into diverse products, such as FPC stiffeners, PCB drilling backup boards, fiberglass dielectrics, carbon film printing fiberglass sheets for potentiometers, precision rotary star gears (wafer grinding), precision test boards, etc. Besides, FR-4 can be made into insulation separators for electrical equipment, insulation gaskets, transformer insulation plates, motor insulation components, grinding gears and insulation boards for electronic switches.
Supported by our advanced production technology and rigorous quality control, our FR-4 materials deliver stable high performance across all sectors. We supply insulation solutions that meet customers’ stringent standards and promote technological innovation and development. We strive to be an industry leader, providing premium FR-4 products for all clients.
FR4 Mechanical Properties
Vertical Bending Strength (Normal State, E-1/150, 150±5℃): ≥340 MPa
Parallel Layer Impact Strength (Simply Supported Beam Method): ≥230 KJ/m
Electrical Performance
Insulation Resistance after Water Immersion (D-24/23 Standard): ≥5.0×10⁸ Ω
Vertical Layer Dielectric Strength (1 mm Plate, 90±2℃ Transformer Oil)
Parallel Layer Breakdown Voltage (90±2℃ Transformer Oil): ≥40 KV
Relative Dielectric Constant (50Hz): ≤5.5
Relative Dielectric Constant (1MHz): ≤5.5
Dielectric Loss Factor (50Hz): ≤0.04
Dielectric Loss Factor (1MHz): ≤0.04
Physical Properties
Water Absorption (D-24/23, 1.6mm Plate Thickness): ≤19 mg
Density: 1.70–1.90 g/cm³
Flammability Grade: FV0
Heat Treatment & Material Characteristics
Melting Point of FR-4 Press Plate: 203℃
This material features excellent chemical resistance, with a low dielectric loss coefficient (Df = 0.0025) and a stable, low dielectric constant (Dk = 2.35). Classified as a thermoplastic material, it delivers stable electrical performance and reliable environmental adaptability for industrial insulation applications.
